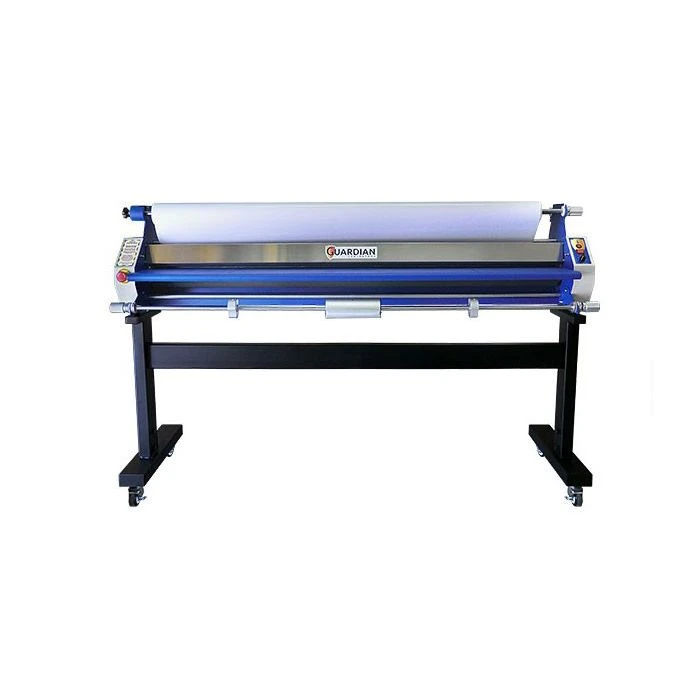

Guardian 65″ Wide Format Cold Laminator Machine

Guardian Laminators are an affordable, easy to use solution for all of your finishing needs including laminating and mounting. The Guardian systems intuitive design makes for quick and easy use, maintenance, and cleaning, saving you time on production. Solid, all steel construction provides high quality performance and ensures Guardian Laminators are built to last.

Features:

• All steel component construction
• Forward/reverse functionality
• Upper and lower idler bars
• Variable speed (up to 23 ft/min)
• Lower mandrel with double ended tension brake
• Adjustable pressure settings
• Easy loading drop-in supply shafts
• Removable feed table
• Crowned, high quality silicone rollers
• One year parts warranty
• Optional take-up system
• Optional media mandrel kit

Specifications:

• Lamination Speed Variable, up to 23 ft/min (7m/min)
• Laminate Width 64.96 in (1650 mm)
• Maximum Media Thickness 0.57 in (14.48 mm)
• Power – Cold 120 V / 60Hz, 0.5A, 25 Watts
• Power – Heat Assist 120 V / 60Hz, 9A, 1300 Watts
• Heat Assist Temperature Range 104-122F (40-50C )
• Feed Tray Height 36 in (916 mm)
• Assembled Dimensions 73.2 x 22.4 x 51.18 in (1860 x 570 x 1300 mm)
• Shipping dimensions: 78.8″ x 19.3″ x 23.2″
