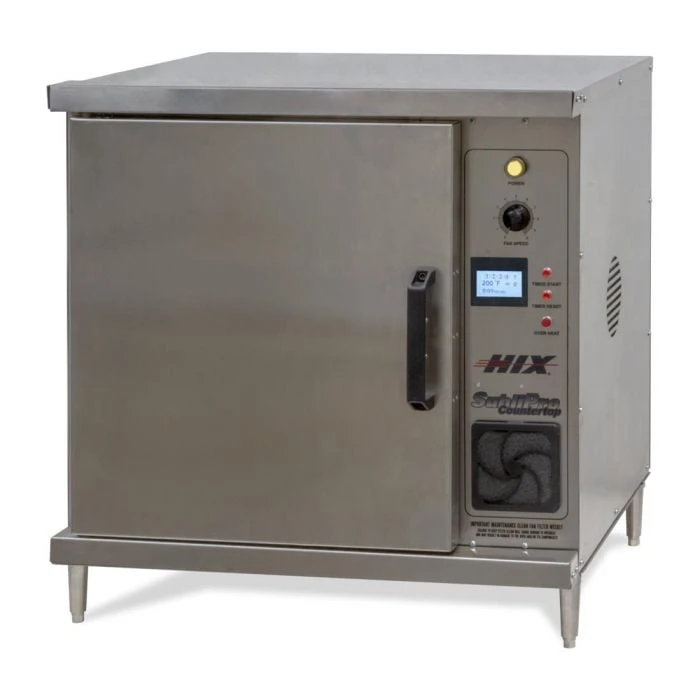

HIX SubliPro CounterTop Sublimation Oven

The HIX SubliPro CounterTop oven provides the ideal solution for largescale sublimation of drinkware such as ceramic mugs, shot glasses, pint glasses, beer steins and more! The SubliPro CT has a large porcelain enamel steel oven interior, which produces as many as 12-15 mugs per cycle or more than 48 per hour. It comes with nine position nickel-plated rack guides and four nickel-plated racks to accommodate a variety of substrates with varying heights and diameters. The oven chamber is heated by powerful 7.5 KW heating elements, and air convection is provided by a two speed 1⁄3 H.P. oven blower motor. The oven is fully insulated and enclosed with stainless steel panels and door with a double pane window. It comes with temperature controls adjustable from 200° to 500°F and a 60-minute electrical timer with continuous sounding buzzer.

Features

• Stainless steel front, sides, top and rear enclosure panel
• Stainless steel door with double pane window
• Cool-to-the-touch oven door handle
• Stainless steel oven door gaskets
• 7.5 KW heat input (8.0 KW total with blower motor)
• Solid state temperature control adjusts from 200° to 500°F
• 60 minute electric timer with time expired buzzer
• 1⁄3 H.P. two speed fan motor
• Oven cool switch for rapid cool down when door is open
• Oven interior liners are porcelain on steel
• Nine position rack guide with four nickel plated racks



Specifications

• HIX SubliPro CT Convection Oven for Sublimation
• Oven Chamber: 15 ¼”W x 21”D x 20”H
• Volt/Amp/Phase: Choose from 208V/38A/1PH, 208V/23A/3PH, 240V/33A/1PH, or 240V/19A/3PH
• Temperature Range: 200°F – 500°F (93°C – 260°C)
• Fan Power: 1/3 H.P.
• Oven Dimensions: 30”W x 28 ½”D x 29”H
• Oven Weight: 218 lbs
• Shipping dimensions: 33”W x 33”D x 36”H
• Shipping Weight: 271 lbs
• UL-Certified
• 1-Year Limited Warranty
