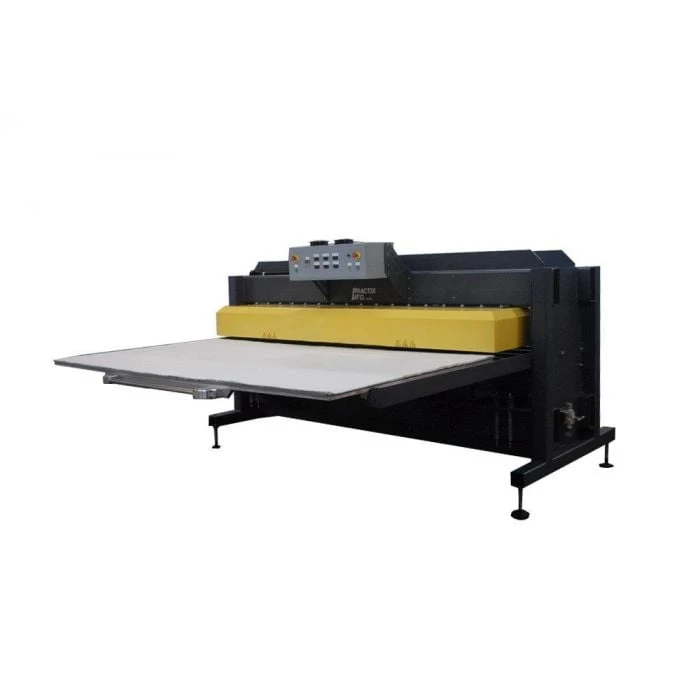

Practix Single Platen 60″ X 108″ (5ft X 9ft)

The Practix OK-160SB Industrial Heat Press utilizes a heavy frame, automation and high pressure capabilities to create the most reliable wide-format heat press machine on the market! A high watt density heater on the platen allows the heater to heat up faster and maintain consistent temperature during production. Perfect press for Dye-Sublimation!

Features:

• Digital temperature controller with PID and auto-tune
• Consistent heat throughout platen (6 independent zones)
• Premium micathermic heaters with high watt density providing minimal thermal lag
• 40 ton (80,000 Ibs of force) / 20 ton (40,000 Ibs of force)
• Adjustable pressure regulator with gauge
• Single front loading table on slides, allowing for ease of loading blank away from heat source
• Minimum physical effort for operation
• High pressure, self-leveling pneumatic lift of bottom plate to meet the top heater plate
• Dual push close to start for safety and automatic release at the end of timer cycle

Specifications:

• Platen size: 5’x9′ (60″x108″)
• Platen Force: 80,000 Ibs
• Power Consumption: 48kW
• Electrical: 240V 3PH
• Amps: 115
• Air Supply: 100 PSI 1cfm
• Weight: 7,000 Ibs
• A loading dock and decent-sized fork lift will be needed at time of installation
